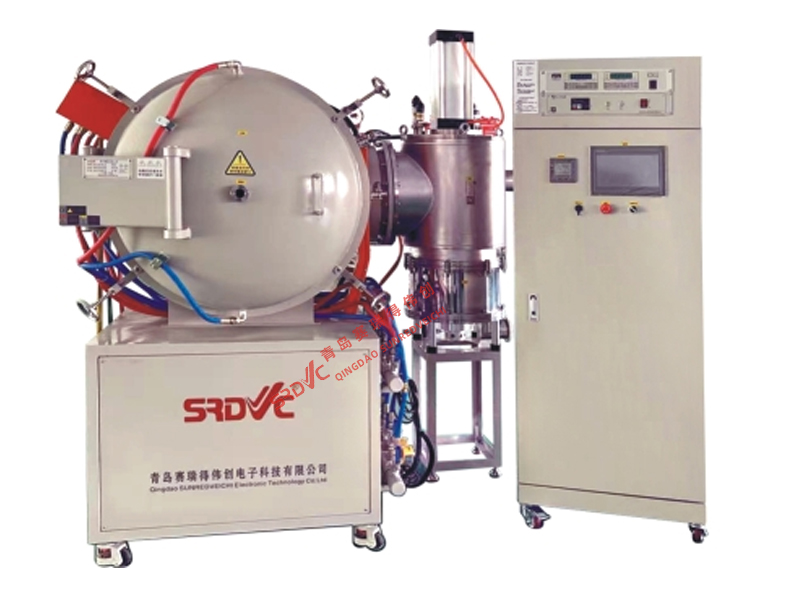

真空氢气炉/退火炉/烧结炉Vacuum hydrogen furnace / Annealing furnace / Sintering furnace 应用于航空航天、电真空、热处理行业；可完成对铜、钛、钨、钼、铝箔、高速钢、不锈钢及蒙乃尔合金、坡莫合金等材料进行退火处理。对各种电真空器件的烧结、钎焊工艺。陶瓷材料、磁性材料和稀有难熔金属等材料进行还原、烧结、退火和表面处理等工艺需要。

       It is applicable to the aerospace, electro - vacuum, and heat - treatment industries. It can perform annealing treatment on materials such as copper, titanium, tungsten, molybdenum, aluminum foil, high - speed steel, stainless steel, Monel alloy, and Permalloy. It also meets the requirements of sintering and brazing processes for various electro - vacuum devices, as well as the processes of reduction, sintering, annealing, and surface treatment for ceramic materials, magnetic materials, and rare refractory metals.

主要技术指标

◆ 可选择外形形式：立式、卧式、钟罩式

◆ 最高温度：最大2400℃

◆ 极限真空度： 5×10-5Pa

◆ 加热方式：立式多层加热器

◆ 设备不间断长期运行,特殊的省电设计和特点设计

◆ 立式长工艺管的拆装和维护：有特殊机构和装具

◆ 排放氢气点火装置

◆ Vertical continuous preparation

Key parameters

◆ Optional shape: Vertical, horizontal, bell-liked

◆ Peak working temperature: MAX 2400℃

◆ Limit of vacuum degree: 5×10-5Pa

◆ Pressure ascend speed: ≤0.067Pa/h(depending on different materials，in practice, better than 10-2pa/h.

◆ Temperature uniformity: ±5℃

◆ Electric system control mode: Automatic, manual and completely manual.
