设备主要特点Features of equipments

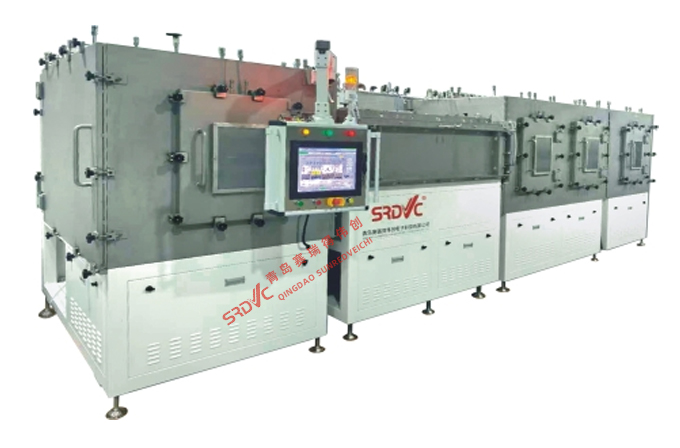

◆ 石墨烯薄膜产能（产业化）设备

◆ 宽幅卷对卷连续生长

◆ 具备自动纠偏

◆ 张力可连续调整

◆ 薄膜制备过程全自动控制

◆ Equipment for Graphene Film Production Capacity (Industrialization)

◆ Wide - format Roll - to - Roll Continuous Growth

◆ Equipped with Automatic Deviation Correction

◆ Tension Continuously Adjustable

◆ Fully Automatic Control of the Thin - Film Preparation Process

主要参数（可按要求定制）: Main Specification( Designed by buyer’s request)

◆ 工作温度：900~1600℃

◆ 卷材直径：1000mm

◆ 卷材宽度：500mm

◆ 加热方式：超高频感应加热和电阻加热

◆ 卷材运行速度约:5-400mm/min，可调

◆ 极限真空度：小于3Pa

◆ 卷材纠偏：收卷时薄膜两侧边缘偏差小于±0.5 mm

◆ Operating temperature: 900 - 1600℃

◆ Coil diameter: 1000mm

◆ Coil width: 500mm

◆ Heating methods: Ultra - high - frequency induction heating and resistance heating

◆ Coil running speed: approximately 5 - 400mm/min, adjustable

◆ Ultimate vacuum degree: less than 3Pa

◆ Coil deviation correction: The deviation of the two side edges of the film during winding is less than ±0.5 mm
